JYD-400 Computer Fully Automatic V Bottom Paper Bag Machine

JYD-400 Computer Fully Automatic V Bottom Paper Bag Machine

Full automatic high speed sharp bottom paper bag making machine is suitable for varied primary and printed rolling paper, such as Kraft paper,slick paper,coated paper,medico paper and so on. It finishes all procession all in a time consisting: perforating, middle gluing,printed pattern calibration, tube forming, calibration snapping, bottom folding, bottom forming, and collect final product quantitatively. This machine operate easier, working more efficient, and performance more steadily. It is a fantastic machine for full paper bag, paper bag with window, leisure snack bag, bakery bag, fast food bag, dry fruit bag eco-bag and so on.
Online Inquiry Contact Us

Product Details

Full automatic high speed sharp bottom paper bag making machine is suitable for varied primary and printed rolling paper, such as Kraft paper,slick paper,coated paper,medico paper and so on. It   finishes all procession all in a time consisting: perforating, middle gluing,printed pattern calibration, tube forming, calibration snapping, bottom folding, bottom forming, and collect final product quantitatively. This machine operate easier, working more efficient, and performance more steadily. It is a fantastic machine for full paper bag, paper bag with window, leisure snack bag, bakery bag, fast food bag, dry fruit bag eco-bag and so on.

Characteristics

1.It is suitable for paper between 40-80gsm.

2.It can change and control bag length through PLC setting.

3.It is with auto tension and EPC system.

Parameters

Model

JYD-400

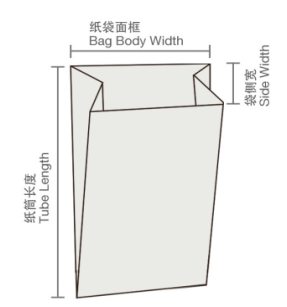

Length of bag cutting





Bag width

80-250mm



Insert size

20-120mm



Bag mouth height

15/20mm

Bag speed

60-400pcs/min



Paper feed width

800 mm

Paper material dia.

1000 mm

Paper material thickness

40-80g/m²

Working Air

More than 0.12m3/ minutes, 0.6-1.2 MPa

Electric power

7KW

Total weight

1600kg

Machine Dimension

4200x1850x1600mm

Function Cofiguration

1.Paper roll feeding

2.Paper automatic deviation correction(optional)

3.Paper tension self adjustment (optional)

4. Top glue

5. Tube forming

6. Bag tube pulling break

7. Bottom gluing

8.Bottom folding

9.Paper bag collection (batch counting)
