JXFD Square Bottom Paper Bag Machine-machanical Type

JXFD Square Bottom Paper Bag Machine-machanical Type

Full automatic high speed sharp bottom paper bag making machine is suitable for varied primary and printed rolling paper, such as Kraft paper,slick paper,coated paper,medico paper and so on. It finishes all procession all in a time consisting: perforating, middle gluing,printed pattern calibration, tube forming, calibration snapping, bottom folding, bottom forming, and collect final product quantitatively.

Product Details

Full automatic high speed sharp bottom paper bag making machine is suitable for varied primary and printed rolling paper, such as Kraft paper,slick paper,coated paper,medico paper and so on. It finishes all procession all in a time consisting: perforating, middle gluing,printed pattern calibration, tube forming, calibration snapping, bottom folding, bottom forming, and collect final product quantitatively. This machine operate easier, working more efficient, and performance more steadily. It is a fantastic machine for full paper bag, paper bag with window, leisure snack bag, bakery bag, fast food bag, dry fruit bag eco-bag and so on.

Characteristics

1:1t is suitable for paper between 80-150gsm.
2:The PLC system can calculate parameters correctly.

3:Cutbythepointcutter.

Main technical parameters

Model

JXFD-180

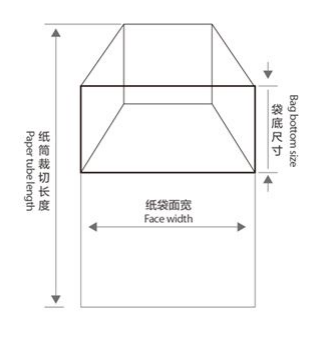

Length of cutting

260-530mm



Bag length

260-530mm



Bag width

80-190mm



Bag speed

150pcs/min



Paper feed width

320-600mm

Bottom width

50-100mm

Paper material thickness

50-120g/m²

Working Air Current

≥0.12m3/分钟,0.6-1.2兆帕

More than 0.12m3/ minutes, 0.6-1.2 MPa

Electric power

380V3相4线  11kw

380V3 phase 4 wire 11kw

Total weight

4300kg

Machine Dimension

10000x1600x1750mm



Model

JXFD-290





Length of cutting

260-530mm



Bag length

260-530mm



Bag width

120-290mm



Bag speed

150pcs/min



纸料宽度

Paper feed width

320-900mm

Bottom width

60-180mm

Paper material thickness

60-150g/m²

Working Air Current

≥0.12m3/分钟,0.6-1.2兆帕

More than 0.12m3/ minutes, 0.6-1.2 MPa

Electric power

380V3相4线  11kw

380V3 phase 4 wire 11kw

Total weight

4500kg

Machine Dimension

10000x2500x1800mm



Model

JXFD-330











Length of cutting

260-530mm



Bag length

260-530mm



Bag width

140-330mm



Bag speed

150pcs/min



Paper feed width

320-900mm

Bottom width

80-180mm

Paper material thickness

80-150g/m²

Working Air Current

≥0.12m3,0.6-1.2

More than 0.12m3/ minutes, 0.6-1.2 MPa

Electric power

380V3 phase 4 wire 11kw

Total weight

4800kg

Machine Dimension

10000x26000x1800mm



Model

JXFD-460











Length of cutting

260-530mm



Bag length

260-530mm



Bag width

220-460mm



Bag speed

150pcs/min



Paper feed width

600-1300mm

Bottom width

100-200mm

Paper material thickness

  80-150g/m²

Working Air Current

More than 0.12m3/ minutes, 0.6-1.2 MPa

Electric power

380V3 phase 4 wire 11kw

Total weight

5000kg

Machine Dimension

10000x3000x1800mm



Model

JXFD-460











Length of cutting

260-530mm

Bag length

260-530mm



Bag width

220-460mm

Bag speed

150pcs/min

Paper feed width

600-1300mm

Bottom width

100-200mm

Paper material thickness

  80-150g/m²

Working Air Current

More than 0.12m3/ minutes, 0.6-1.2 MPa

Electric power

380V3 phase 4 wire 11kw

Total weight

5000kg

Machine Dimension

10000x3000x1800mm
