This machine is mainly supporting semi-automatic paper bag machines. It can produce the round rope handle on line ,and stick the handle on the bag on line too, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks paper belts and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.
|
Overall dimension |
L6000*W2450*H1700mm |
|
Motor brand |
ZHENGMING geared motor |
|
Total power |
380V，10KW，50HZ |
|
Servo motor brand |
INOVANCE |
|
Servo motor power |
750W two group |
|
PIC programming brand |
Siemens |
|
Hot melt machine brand |
JKAIOL |
|
Mechanical arm |
DELTA Taiwan |
|
Correct an error |
KCON |
|

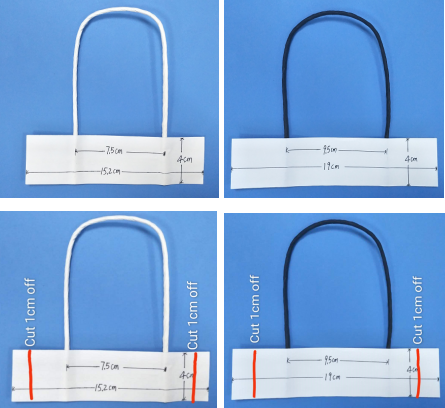

Paper Rope Handle Spacing |
75mm、95mm |
|
Paper width |
40mm |
|
Paper rope length |
360mm |
|
Paper rope height |
140mm |
|
Paper Gram Weight |
80-140g/㎡ |
|
Bag width |
250-400mm |
|
Bag height |
250-400mm |
|
Top opening size over 130mm |
(Bag Width minus the width of folding ) |
|
Production speed |
33-43pcs/min |
|
Part Name |
Qty |
Unit |
|
滑块SLIDDER |
2 |
SETS |
|
模板 MOULD |
2 |
PCS |
|
链条CHAIN |
1 |
SETS |
|
上胶轮GLUE WHEELER |
2 |
PCS |
|
钨钢圆刀ROUND KNIFE |
1 |
PCS |
|
方刀SQUARE KNIFE |
2 |
PCS |
|
切刀轮CUTTER WHEEL |
2 |
PCS |
|
工具箱TOOL BOX |
1 |
SETS |
|
名称name |
Overall dimension（With the cases） |
Gross Weight |
|
主机 MAIN MACHINE |
2300*1300*1950mm |
1500kg |
|
放料架 MATERIAL HOLDING FRAME 电箱 Control box |
2600*850*1750mm |
590kg |
|
贴手挽部分 Pasting unit |
2350*1300*1750mm |
1170kg |
This machine mainly support high speed paper handle machine and paper bag machine. It can make paper rope in a high speed and provide paper rope for paper handle machine. The machine uses narrow web as raw material, through the high speed spinning of the axes of the machine,paper twisted into rope and kept in paper rope roll.Users can adjust the diameter of the paper rope to meet different production needs. We can also upgrade the machine to make it can make two roll paper rope at the same time according to the customers' need which can improve the production efficiency.
