This machine is mainly supporting semi-automatic paper bag machines. It can quickly produce paper handle with twisted rope, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks scraps of paper and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.
1. The machine is easy to operate and can produce paper handles with high speed usually reach 170 pairs per minute.
2. We design and offer the optional auto-production line, which can automatic gluing replace the human gluing procedure so that help to reduce lots of labor cost. It is strongly advice the paper bag producing factory use the auto-produce line that also support customize.
3. The unit paper bag can lift the heavy things of 15 kg at most, when the tension of raw materials reaches a certain level.
|
Paper Roll Core Diameter |
Φ76 mm(3'') |
|
Max. Paper Roll Diameter |
Φ1000mm |
|
Production Speed |
10000pairs/hour |
|
Power Requirements |
380V |
|
Total Power |
7.8KW |
|
Total Weight |
Approx.1500kg |
|
Overall Dimension |
L4000*W1300*H1500mm |
|

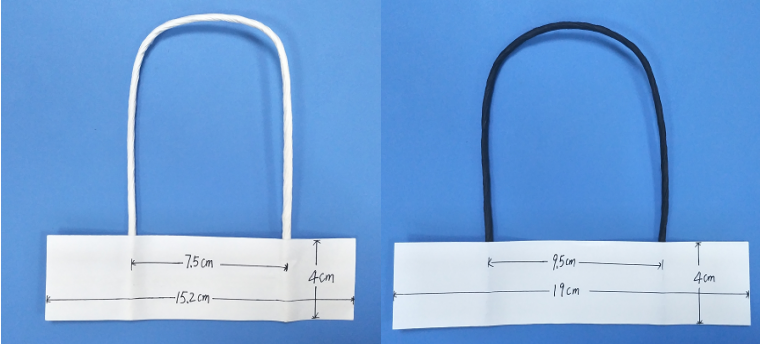

Paper Length |
152-190mm(Optional) |
|
Paper Rope Handle Spacing |
75-95mm(Optional) |
|
Paper Width |
40mm |
|
Paper Rope Height |
100mm |
|
Paper Roll Diameter |
3.0-4mm |
|
Paper Gram Weight |
100-130g/㎡ |
|
Glue Type |
Hot-melt glue |
This machine is mainly supporting semi-automatic paper bag machines. It can produce the round rope handle on line ,and stick the handle on the bag on line too, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks paper belts and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.
This machine is mainly supporting high-speed hand the machine and paper bag machine, able to quickly produce a circular rope, so as to higher speed the machine to provide raw materials. The machine with a narrow web of raw materials, through the high-speed rotation of the axis of the machine, so that the paper twisted into a rope, and in the form of rope to save. The user can adjust the diameter of the rope, so as to meet different production requirements.
This machine mainly support high speed paper handle machine and paper bag machine. It can make paper rope in a high speed and provide paper rope for paper handle machine. The machine uses narrow web as raw material, through the high speed spinning of the axes of the machine,paper twisted into rope and kept in paper rope roll.Users can adjust the diameter of the paper rope to meet different production needs. We can also upgrade the machine to make it can make two roll paper rope at the same time according to the customers' need which can improve the production efficiency.
