This machine is a new generation of our newly developed flat rope handle machine, through our continuous research and innovation, the machine can produce 230-300pcs per min, and operate simply. Through a complex process, it makes four cutted rolls of paper which have been cut into flat rope and flat handle once shaping, and can be combined with water glue system and the assembly line can rapidly increase production speed, it is suitable for mass production。
|

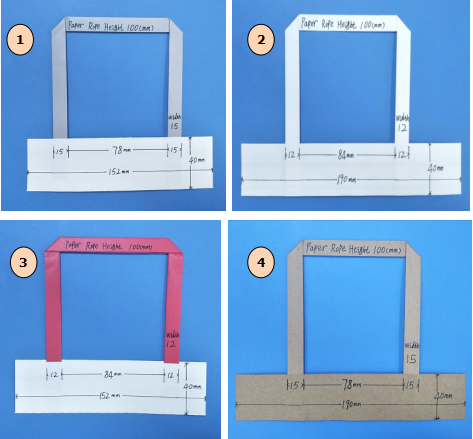

Handle Spacing |
108mm |
|
Paper Rope Width |
12mm/15mm |
|
Paper Rope Height |
10cm |
|
Paper Width |
40mm |
|
Paper Length |
152/190mm |
|
Paper Rope Length |
352mm |
|
Paper Gram Weight |
100-120g/㎡ |
|
Production Speed |
6000pairs/h |
|
Power Requirements |
380V |
|
Total Power |
10KW |
|
Total weight |
Appr.4000kg |
|
Overall Dimension |
L5000*W1500*H1500mm |
|
Glue Type |
Hot-melt glue |
This machine is mainly supporting high-speed hand the machine and paper bag machine, able to quickly produce a circular rope, so as to higher speed the machine to provide raw materials. The machine with a narrow web of raw materials, through the high-speed rotation of the axis of the machine, so that the paper twisted into a rope, and in the form of rope to save. The user can adjust the diameter of the rope, so as to meet different production requirements.
This machine is mainly supporting semi-automatic paper bag machines. It can quickly produce paper handle with twisted rope, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks scraps of paper and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.
We are High-speed Automatic Slitting machine suppliers/manufacturers from china factory. We also can produce the High-speed Automatic Slitting machine according to the client’s requirement. We are always try our best to become the good High-speed Automatic Slitting machine, slitting machine, strip separating machine, slitter rewinder, paper roll slitting machine, plastic film slitting machine manufacturers/suppliers and welcome the customer from all over the world to contact with us.
This machine is mainly supporting semi-automatic paper bag machines. It can produce the round rope handle on line ,and stick the handle on the bag on line too, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks paper belts and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.
