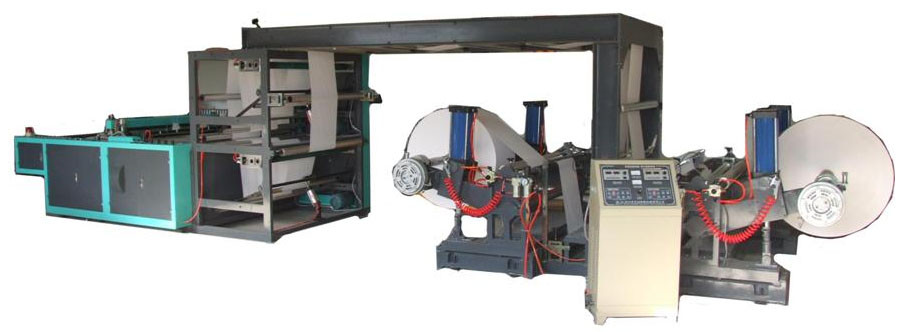

HQJ-1400D(A4) Paper Cutting Machine 01set
4 ROLL WITH AUTO TRIMMING
Parameters AND PARTS
1, cross cutting material range 50g-350g (paper)
2, cutting width: less than 1400mm
3. The crosscutting accuracy: 0.2mm
4. Crosscutting length: 20mm-500mm
5, mechanical line speed: 70M/min
(depending on the length of the material cut)
(A4 specification one minute and 140 knives)
6, the frequency of cutting: 10 - 140times//min
7, the maximum roll diameter: less than 1400mm
8. Total power of power supply: 10.5kw/380V/50Hz
9. Machine weight: about 4600kg
10. The shape size: L x W x H (8500 mm x 2100 mm x 1900mm)
Automatic feeding mechanism (the 4 cylinder of 150# cylinder mechanism) is adopted in the reel device.
Use of automatic tension control system (2 sets) for discharge tension
Rolling tension is controlled by magnetic powder brake (20kg2)
Automatic rectifying device system for reel
The control of rectifying motor using 130 type synchronous motor
Optoelectronics eye (2)
The main engine adopts variable frequency speed control (3kw1)
The 3KW blue Lanhai Huateng inverter
Feeding length by servo control system (4.4kw1)
Traction motor with variable frequency speed control (1.5KW 1)
Frequency converter (1.5KW 1 sets)
A vertical shearing device for cutting

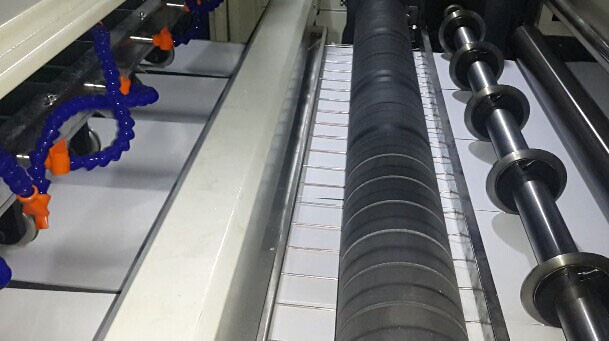

The upper and lower slitting circular knife roll cutting device (6 pairs)
Exhaust fan automatic discharge (1.1kw1)
Conveyor belt automatic transmission mechanism
Synchronous motor drive (0.75kw1) for conveyer belt
The PLC control system is adopted in the whole machine.
The Taiwan weinview touch screen, PLC controller by Japan Panasonic, switch by
Schneider.Delivery by 0.75KW inverter (Langhai huateng) 1
2 HQJ-1400D(A4) Paper Cutting Machine 01set
2 ROLL loading WITH AUTO TRIMMING
Parameters AND PARTS
1, cross cutting material range 50g-350g (paper)
2, cutting width: less than 1400mm
3. The crosscutting accuracy: 0.2mm
4. Crosscutting length: 20mm-500mm
5, mechanical line speed: 70M/min
(depending on the length of the material cut)
(A4 specification one minute and 140 knives)
6, the frequency of cutting: 10 - 140times//min
7, the maximum roll diameter: less than 1400mm
8. Total power of power supply: 10.5kw/380V/50Hz
9. Machine weight: about 4600kg
10. The shape size: L x W x H (8500 mm x 2100 mm x 1900mm)
Automatic feeding mechanism (the 4 cylinder of 150# cylinder mechanism) is adopted in the reel device.
Use of automatic tension control system (2 sets) for discharge tension
Rolling tension is controlled by magnetic powder brake (20kg2)
Automatic rectifying device system for reel
The control of rectifying motor using 130 type synchronous motor
Optoelectronics eye (2)
The main engine adopts variable frequency speed control (3kw1)
The 3KW blue Lanhai Huateng inverter
Feeding length by servo control system (4.4kw1)
Traction motor with variable frequency speed control (1.5KW 1)
Frequency converter (1.5KW 1 sets)
A vertical shearing device for cutting
The upper and lower slitting circular knife roll cutting device (6 pairs)
Exhaust fan automatic discharge (1.1kw1)
Conveyor belt automatic transmission mechanism
Synchronous motor drive (0.75kw1) for conveyer belt
The PLC control system is adopted in the whole machine.
The Taiwan weinview touch screen, PLC controller by Japan Panasonic, switch by Schneider.Delivery by 0.75KW inverter (Langhai huateng)
3 HQJ-1400D(A4) Paper Cutting Machine 01set
1 rolls load
Parameters AND PARTS
1, cross cutting material range 50g-350g (paper)
2, cutting width: less than 1100mm
3. The crosscutting accuracy: 0.2mm
4. Crosscutting length: 20mm-500mm
5, mechanical line speed: 70M/min
(depending on the length of the material cut)
(A4 specification one minute and 140 knives)
6, the frequency of cutting: 10 - 140times//min
7, the maximum roll diameter: less than 1400mm
8. Total power of power supply: about 10.5kw/380V/50Hz
9. Machine weight: about 3600kg
10. The shape size: L x W x H (8500 mm x 2100 mm x 1900mm)
Automatic feeding mechanism (the 4 cylinder of 150# cylinder mechanism) is adopted in the reel device.
Use of automatic tension control system (2 sets) for discharge tension
Rolling tension is controlled by magnetic powder brake (20kg2)
Automatic rectifying device system for reel
The control of rectifying motor using 130 type synchronous motor
Electronically eye (2)
The main engine adopts variable frequency speed control (3kw1)
The 3KW blue ocean Huateng inverter
Feeding length by servo control system (4.4kw1)
Traction motor with variable frequency speed control (1.5KW 1)
Frequency converter (1.5KW 1 sets)
A vertical shearing device for cutting
The upper and lower slitting circular knife roll cutting device (6 pairs)
Exhaust fan automatic discharge (1.1kw1)
Conveyor belt automatic transmission mechanism
Synchronous motor drive (0.75kw1) for conveyer belt
The PLC control system is adopted in the whole machine.
The Taiwan weinview touch screen, PLC controller by Japan Panasonic, switch by Schneider.Delivery by 0.75KW inverter (Lanhai huateng) 1
SUB-TOTAL
SEAFREIGHT AND INSURANCE 1*40HQ
TOTAL CFR DAR ES SALAM
SAY US DOLLARS SEVENTY FIVE THOUSAND EIGHT HUNDRED SEVENTY ONLY
TERMS&CONDITIONS
1.P/I validity:one month
2.Port of loading: Ningbo, China
3.Port of discharge:DAR ES SALAM
4.TERMS OF PAYMENT: USD 11650 IN ADVANCE, BALANCE PY BY LC AT SIGHT
5.PRICE TERM:CFR DAR ES SALAM
6.DELIVERY TIME: 60days
